The principle of dot gain compensation plate curves

In a film workflow the industry standard was to create film output that was linear. This meant that a 25% tone request in the original Postscript file would create a 25% dot on the film, a 50% request would create a 50% dot, and so one for all requested tone values. However, in a CtP workflow controlling tonality in the print reproduction process, allows you achieve the presswork quality you want without adjusting the press. It also provides the flexibility to tailor the print characteristic to meet different customer expectations.

Dot gain, or tone value increase (TVI), is a normal part of the print reproduction process. Controlling tones using calibration means that you can manipulate the exact size of the dots on the printing plates so that tone saturation and gray balance are controlled on the press sheet.

Tonal calibration can account for:
• type of plate or film used
• type of paper stock used for printing
• type of dot shape used
• type of screening used—for example, FM/Stochastic or AM/XM conventional, and frequency (lines per inch (lpi))

(Note: Adjusting CtP laser exposure is not tonal calibration and will affect the run length and performance of the plate.)

You cannot use tonal calibration as a substitute for stable operating conditions. Operating conditions must be controlled as a separate process. In fact, without a stable operating environment, you cannot achieve accurate tonal calibration let alone reliable press output.

What Is Tonality?

Printers are used to being concerned with dot gain/TVI. Indeed dot gain values are often included in printing specifications. However, for the purposes of calibration - tonality or dot area, rather than dot gain, is the key metric. It does not matter what dot gain you have. What matters is whether you achieve the required final tone values or dot areas at each originally requested tone.
On the left is the desired "correct" tone reproduction and on the right is incorrect tone reproduction.

Tonality in printing is the progression of tints from blank paper to solid ink for each requested tone value in a printing job. It is measured with a densitometer, and reported as either dot gain/TVI or dot area:
Dot area and dot gain - two ways of charting the same data.

The target print characteristic tone curve

Building dot gain compensation plate curves always begins with a target print characteristic, i.e. what you want to achieve on press. This is called the target curve - the current tone reproduction that you wish to achieve. It could be your current press work, a proof, or it could be an industry supplied set of tone values. You measure the target sample and enter the dot area (tonal value) for the tints achieved on the target curve graph. If the target is a press sheet, for example, your current 150 lpi AM/XM presswork, the graph will represent your current tone print characteristic:
Target print characteristic tone curve - what we want our presswork to look like.

If you change your screening, for example going to FM screening, higher solid ink densities, or higher lpi AM/XM screening, etc. then, if nothing else changes, the tonal response on press will change due to the difference in dot gain:
New print characteristic tone curve caused by a change in screening method being used - what the presswork now looks like after changing the halftone screening.

The goal of implementing dot gain compensation plate curves is to make the new press work mimic the original target press tone response. In the above example, the boy's face should appear the same as the original image despite the dot gain caused by changing the halftone screening.

Creating the dot gain compensation plate curve

Building a dot gain compensation plate curve starts with comparing the current target tone response with the tone response of the new presswork. In this case run to the same solid ink densities, on the same paper and press - only the screening has been changed:
On the left is the current target tone curve and on the right is the new tone response resulting from the change in screening.

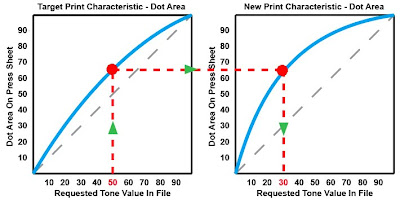

The graphs are then examined by looking at the original requested Postscript tone and the target response (left chart) and comparing it with the new tone response (right chart):
In the current target tone curve a 50% tone request resulted in a 68% tone in the presswork. That same target 68% was delivered in the new presswork from a requested tone value of 30%.

Put another way, we are looking for what requested tone value in our new presswork delivered the same final tone value in the target presswork. In this example a 30% tone request in the new presswork delivered the same tone value as a 50% request in the old while a 50% request in the new gave the same tone as a 70% request in the old.

Here's another way to visualize it:
Target 150 lpi compared with FM tone response.

Remapping the tones is simply doing this:
Find the tone in the new presswork that delivers the required tone response in the old target presswork.


The comparison between target curve and new current curve is made for each 10% change in tone.

The idea is then to map these values so that a tone request in the original file gets changed to a new value that produces the same final tone as the same tone request did in the old target presswork. The result is a lookup table for tone swapping.

In this example:

The requested 10% tone is remapped to request for a 4% tone
The requested 20% tone is remapped to request for a 10% tone
The requested 30% tone is remapped to request for a 18% tone
The requested 40% tone is remapped to request for a 24% tone
The requested 50% tone is remapped to request for a 30% tone
The requested 60% tone is remapped to request for a 40% tone
The requested 70% tone is remapped to request for a 50% tone
The requested 80% tone is remapped to request for a 65% tone
The requested 90% tone is remapped to request for a 80% tone

The lookup table creates the dot gain compensation plate curve.
The lookup table is applied in the workflow to remap the requested tones to the actual tones on plate that will deliver the desired final tones in the presswork. The result is tonal alignment of the presswork despite differences in dot gain.
On the left is the original target 150 lpi tone response. On the right is the "normalized" tone response of the FM screen.

Some points to keep in mind

1 - It does not matter if the plates are initially run "uncalibrated" or linear for the target presswork.
2 - A dot gain compensation plate curve is not usually applied to the tone range from 0%-5% and 95% to 100%.
3 - One dot gain compensation plate curve is usually applied to all process colors.
4 - There may be a need to apply a specific dot gain compensation plate curve to one of the process colors to maintain gray balance.
5 - Dot gain compensation plate curves cannot compensate for differences in gamut between FM/Stochastic screens and conventional AM/XM screens.

11 comments:

  1. Great stuff! Helped me for my upcoming midterm.

    ReplyDelete
  2. Thank you for writing this post! I just ran across it while searching for articles on plate curve correction. You mention at the end the following points:

    3 - One dot gain compensation plate curve is usually applied to all process colors.
    4 - There may be a need to apply a specific dot gain compensation plate curve to one of the process colors to maintain gray balance.

    Can you explain the reasoning behind these two points? Thanks!

    ReplyDelete
  3. One dot gain compensation plate curve is usually applied to all process colors help keeps things simple. It's also akin to what was done in the film days when one curve (a linearizing curve) was applied to all four film negatives. Sometimes, when curves are applied, grey balance through the tone scale can shift due to effects like ink trapping, ratio of overprints, etc. If that occurs then a different curve may need to be applied to one of the process colors (usually the Yellow) to restore grey balance. The Yellow is modified because its tones are least visible.

    ReplyDelete
    Replies
    1. Thanks for your response. This was helpful.

      Delete
  4. Does anyone know of a generic dot gain curve chart/table used for flexographic printing without doing a fingerprint? I do understand that there is a vast amount of variables that can effect the results. But, I do know that there are many companies producing plates without such a fingerprint and are simply applying a generic curve across the board. Any help would be greatly appreciated.

    ReplyDelete
  5. Hi Grodo, great blog and also great the comments on printplanet.. I usually read all your comments there..

    Gordo I have a question about fingerprints. I am printing my patches with the gradients to get to know the dot gain and after that I am going to apply the compensation curve I will make to the IT8 chart to read with the xrite Io1. But because I only have at work the Xrite io1 I'd like to know if I can read the dot% with it or if I can read Lab values and then convert them into %.

    What are your thoughts on this? what is the best way to do it if one doesn't have a densitometer?

    Thanks a lot!
    Marcelo

    ReplyDelete
  6. Hi Marcelo

    Try this:

    Go to: http://www.brucelindbloom.com/

    The to “Calc” then “Dot Gain from Lab or Profile”

    That might help.

    Gordo

    ReplyDelete
  7. Gordon,

    You have a great article, but I have a few questions regarding real world curve creation. Since everything is relative to D-Max / 100% then it is very important that the corresponding half tone measurements follow what guidelines?
    White reference is based on paper or absolute? Density filter iso E or T? The dots at 1% are present but the instrument cannot quantify a density. Measurements are based on wet or dry ink. Polarization filter applied?

    ReplyDelete
  8. Measure with a densitometer using the Murray/Davis formula, status T absolute (paper included). You don't measure the 1% dots because you don't apply a dot gain compensation to the 5%-1% and 95%-99% tones. Measurements should be made of dry ink (the basis for the standards) so it doesn't matter if a polarizer is used - plus if you're using Status T there shouldn't be a polarizer. The only real difference between Status T and E is in the Yellow printer where Status E reports a higher density than Status T.

    ReplyDelete
  9. Thank you for the reply.

    Absolute would mean the instrument is referencing the density against a white tile. Isn't Murray-Davies equation based on paper density subtracted from Dmax and Dn. Meaning if the reference was the paper it would cancel it from both the Dmax and Dn? The reason I ask is I'm assuming my software Techkon Spectro Connect in tone curve mode is using this equation all ready. But if I set it so the white reference is using the paper it would subtract the paper density with out me manually working the equation. If I measure the paper (the white reference) the result would be density zero.

    ReplyDelete
    Replies
    1. “Absolute would mean the instrument is referencing the density against a white tile.”

      No. Absolute means the instrument is referencing the density of the unprinted paper.

      “Isn't Murray-Davies equation based on paper density subtracted from Dmax and Dn. Meaning if the reference was the paper it would cancel it from both the Dmax and Dn?”

      The Murray-Davies equation subtracts the density of the paper from the density of the solid and the density of the paper.

      “The reason I ask is I'm assuming my software Techkon Spectro Connect in tone curve mode is using this equation all ready. But if I set it so the white reference is using the paper it would subtract the paper density with out me manually working the equation. If I measure the paper (the white reference) the result would be density zero.”

      By measuring the paper white density you are calibrating the instrument to zero against the white. You can see the formula here: http://www.brucelindbloom.com/index.html?Eqn_DotGain.html

      Your spectro should guide you as to which patches to measure without you having to deal with the formula. Remember that the instrument does not know about halftones. Just relative differences in density.

      Delete
